DETAILS

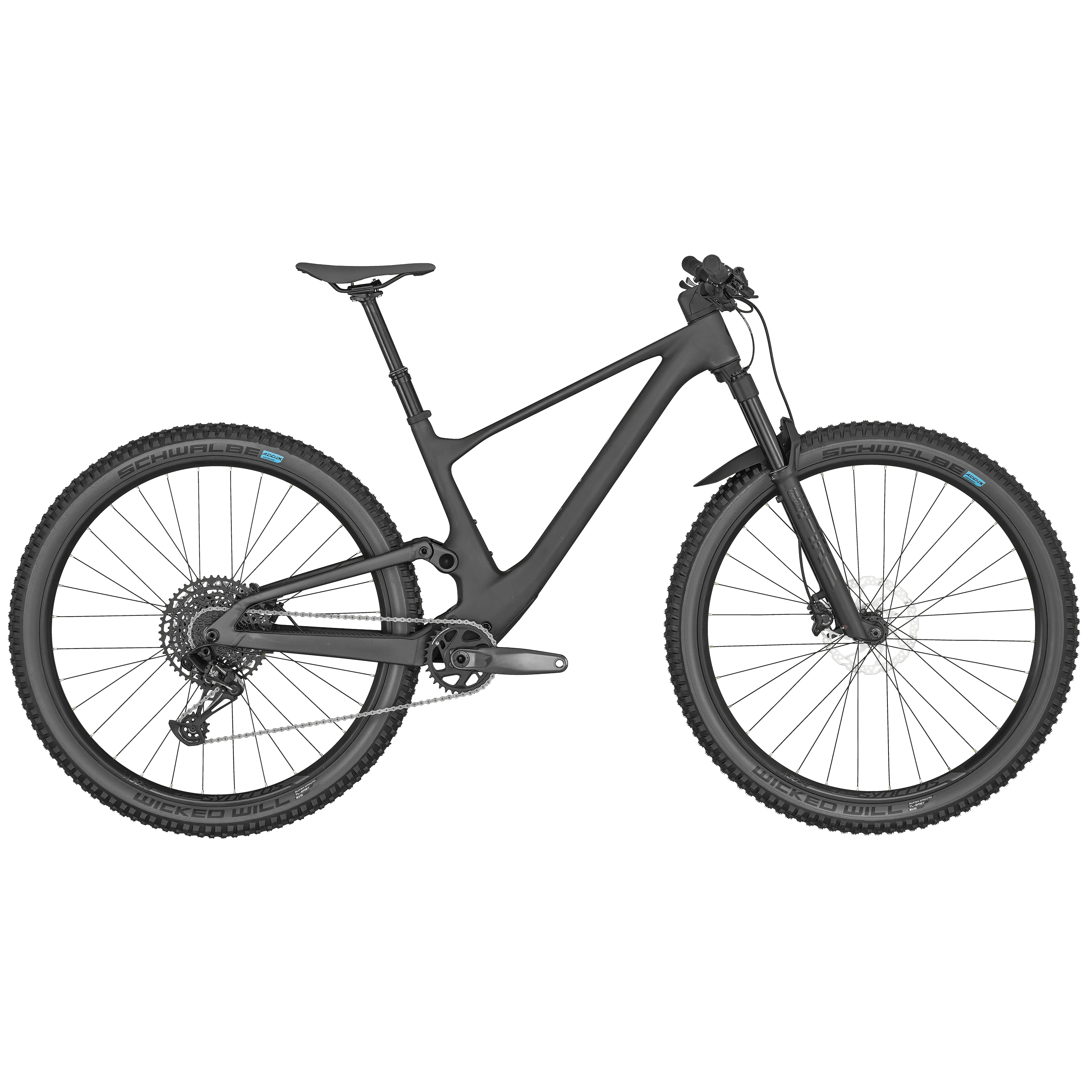

When you think of the perfect mountain bike, what comes to mind? For us, it's the Spark 940. Why, you ask? Well, beyond the fact that it is fast, lightweight and ultra capable on all sorts of terrain, it's just damned good lookin'. Short-travel trail bike? "Downcountry" rig? Occasional race bike? Whatever, call it what you want to call it. All we know is that this is one hell of a mountain bike.
- Spark Carbon HMF-Alloy Frame
- RockShox Pike RL3 130mm Fork
- RS Deluxe Select RL3, 120mm, TwinLoc
- SRAM NX Eagle 12 Speed
- Shimano Disc Brakes
- Schwalbe Wicked Will TireS
SPECIFICATIONS
GRIPS
Syncros Performance XC lock-on grips
HANDLEBAR
Syncros Fraser 2.0 DC Alloy 6061 D.B. mini Rise / back sweep 8 deg / 760mm
HEADSET
Syncros - Acros Angle adjust & Cable Routing HS System -0.6 deg head angle adjustment ZS56/28.6 - ZS56/40 MTB
REMOTE SYSTEM
SCOTT TwinLoc 2 Technology Suspension & Dropper Remote 3 Suspension modes
SADDLE
Syncros Tofino 2.5 Regular
SEATPOST
Syncros Duncan Dropper Post 2.5 31.6mm / S & M size 125mm / L size 150mm / XL size 170mm
STEM
Syncros DC 2.0 Syncros Cable Integration System 0 deg rise / 6061 Alloy / 31.8mm / 1 1/8"
BOTTOM BRACKET
SRAM DUB PF 92 MTB Wide / shell 41x92mm
BRAKES
Shimano MT501 Disc
BRAKES ROTOR
Shimano SM-RT54 CL / F&R 180mm
CASSETTE
SRAM SX-PG1210 / 11-50 T
CHAIN
SRAM CN NX Eagle
CRANKSET
SRAM X1 Eagle DUB 55mm CL / 32T
REAR DERAILLEUR
SRAM NX Eagle 12 Speed
SHIFTERS
SRAM SX Eagle Trigger
FORK
RockShox Pike RL3 Air Custom Charger 3-Mode Damper 15x110mm Maxle Lite / 44mm offset / Tapered steerer Lockout / Reb. Adj. / 130mm travel
FRAME
Spark Carbon HMF Mainframe with Alloy 6011 Swingarm Integrated Suspension Technology Flex Pivot / Adjustable head angle Syncros Cable Integration System BB92 / UDH Interface / 12x148mm with 55mm Chainline
FRAME MATERIAL
Carbon
FRONT TRAVEL
130mm
REAR TRAVEL
120mm
SHOCK
RockShox Deluxe Select RL3 Trunnion 3 modes / Lockout-Trail-Descend Debon Air / Reb. Adj. Travel 120mm / T165X45mm
APPROX. WEIGHT
13.5kg (Tubeless setup)
EXTRAS
Syncros Axle w/Removable Lever with 6mm Allen, T30 and T25 Tools, Syncros Fork Fender
FRONT HUB
Formula CL-811 / 15x110mm
FRONT TYRE
Schwalbe Wicked Will 29x2.4" EVO Super Ground / TLE / 67EPI / Addix Speed Grip
REAR HUB
Formula CL-148S / 12x148mm
REAR TYRE
Schwalbe Wicked Will 29x2.4" EVO Super Ground / TLE / 67EPI / Addix Speed Grip
RIMS
Syncros X-30SE / 32H / 30mm Tubeless ready
SPOKES
Stainless Black 15G / 1.8mm
WHEEL SIZE
29
*Please note product specifications are subject to change.
